Alarmable Class Reference

Responsible for Alarm functions. More...

#include <Alarmable.h>

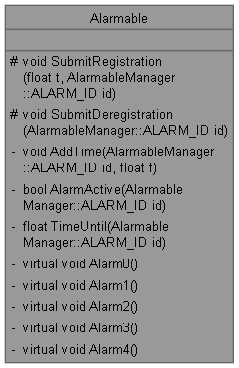

Collaboration diagram for Alarmable:

Protected Member Functions
void	SubmitRegistration (float t, AlarmableManager::ALARM_ID id)
	Called when wanting to start an alarm.
void	SubmitDeregistration (AlarmableManager::ALARM_ID id)
	Called when wanting to cancel an alarm.

Private Member Functions
void	AddTime (AlarmableManager::ALARM_ID id, float f)
	Adjusts the time of an alarm.
bool	AlarmActive (AlarmableManager::ALARM_ID id)
	Returns true if an alarm is active or pending registration.
float	TimeUntil (AlarmableManager::ALARM_ID id)
	Returns time until alarm activates.
virtual void	Alarm0 ()
virtual void	Alarm1 ()
virtual void	Alarm2 ()
virtual void	Alarm3 ()
virtual void	Alarm4 ()

Detailed Description

Responsible for Alarm functions.

Member Function Documentation

AddTime()

void Alarmable::AddTime ( AlarmableManager::ALARM_ID id, float f )

private

Adjusts the time of an alarm.

This function adds or subtracts time to a given alarm id. If time is subtracted past the remaining time, then the alarm will set itself off.

Parameters

id
f

Alarm0()

virtual void Alarmable::Alarm0 ( )

privatevirtual

Alarm1()

virtual void Alarmable::Alarm1 ( )

privatevirtual

Alarm2()

virtual void Alarmable::Alarm2 ( )

privatevirtual

Alarm3()

virtual void Alarmable::Alarm3 ( )

privatevirtual

Alarm4()

virtual void Alarmable::Alarm4 ( )

privatevirtual

AlarmActive()

bool Alarmable::AlarmActive ( AlarmableManager::ALARM_ID id )

private

Returns true if an alarm is active or pending registration.

Parameters

id

Returns

bool

SubmitDeregistration()

void Alarmable::SubmitDeregistration ( AlarmableManager::ALARM_ID id )

protected

Called when wanting to cancel an alarm.

Example:

Alarmable::SubmitDeregistration(AlarmableManager::ALARM_ID::ALARM_0);

Parameters

id

SubmitRegistration()

void Alarmable::SubmitRegistration ( float t, AlarmableManager::ALARM_ID id )

protected

Called when wanting to start an alarm.

Use this function to specify the amount of time you want for your alarm as well as its given id.

Warning

Only one of each alarm can be active at any given moment.

Example:

Alarmable::SubmitRegistration(5, AlarmableManager::ALARM_ID::ALARM_0);

Parameters

t
id

TimeUntil()

float Alarmable::TimeUntil ( AlarmableManager::ALARM_ID id )

private

Returns time until alarm activates.

Returns -1 if an alarm is not currently active.

Parameters

t
id
