Scene Class Reference

Responsible for Scene functions. More...

#include <Scene.h>

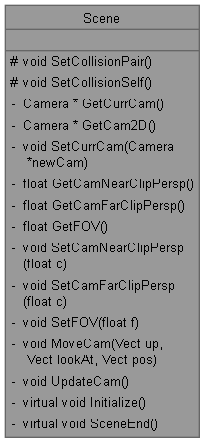

Collaboration diagram for Scene:

Protected Member Functions
template<typename C1, typename C2>
void	SetCollisionPair ()
	Creates a test pair for a GameObject to collide with different typed GameObjects.
template<typename C1>
void	SetCollisionSelf ()
	Creates a test pair for a GameObject to collide with same typed GameObjects.
template<typename C1>
void	SetCollisionTerrain (int threshold)
	Creates a test pair for a GameObject to collide with the Terrain.
void	SetTerrain (std::string TerrainName)
	Sets the Terrain for a given Scene.

Private Member Functions
Camera *	GetCurrCam ()
	Gets Current Camera. For more information go to CameraManager.
Camera *	GetCam2D ()
	Gets Current 2D Camera. For more information go to CameraManager.
void	SetCurrCam (Camera *newCam)
	Changes Current Camera. For more information go to CameraManager.
float	GetCamNearClipPersp ()
	Gets Near Clip Plane. For more information go to CameraManager.
float	GetCamFarClipPersp ()
	Gets Far Clip Plane. For more information go to CameraManager.
float	GetFOV ()
	Gets FOV. For more information go to CameraManager.
void	SetCamNearClipPersp (float c)
	Sets Near Clip Plane. For more information go to CameraManager.
void	SetCamFarClipPersp (float c)
	Sets Far Clip Plane. For more information go to CameraManager.
void	SetFOV (float f)
	Sets FOV. For more information go to CameraManager.
void	MoveCam (Vect up, Vect lookAt, Vect pos)
	Moves Current Camera. For more information go to CameraManager.
void	UpdateCam ()
	Updates Current Camera. For more information go to CameraManager.
Vect	GetListenerPos ()
	Gets Listener Position. For more information go to Listener.
void	SetListenerPos (Vect p)
	Sets Listener Position. For more information go to Listener.
Vect	GetListenerLookAt ()
	Gets Listener Look At Vect. For more information go to Listener.
Vect	GetListenerUp ()
	Gets Listener Up Vect. For more information go to Listeners.
void	SetListenerOrientation (Vect lookAt, Vect up)
	Gets Listener Position. For more information go to Listener.
void	MuteAllSounds ()
	Mutes all current and future sounds.
void	UnmuteAllSounds ()
	Unmutes all current and future sounds.
SoundSourceWorld *	CreateSourceWorld ()
	Used to create a SoundSourceWorld.
SoundSourceListener *	CreateSourceListener ()
	Used to create a SoundSourceListener.
void	ReturnSoundSource (SoundSourceWorld *w)
	Used to return a sound to a scene.
void	ReturnSoundSource (SoundSourceListener *l)
	Used to return a sound to a scene.
bool	IsInsideReverbSpace ()
	Returns true if inside a ReverbSpace.
ReverbSpace *	CreateReverbSpace (const ALuint &reverb)
	Used to create a ReverbSpace with a reverb from ReverbManager.
ReverbSpace *	CreateReverbSpace (const float &wMat, const float &fMat, const float &cMat)
	Used to create a ReverbSpace with a dynamic reverb.
void	ReturnReverbSpace (ReverbSpace *s)
	Used to return a ReverbSpace to a scene.
void	SetTerrainMaterial (float m)
	Sets the Terrain Material for occlusion. Defaults to no occlusion.
void	GetTerrainHeightAndNormal (const Vect &pos, float &h, Vect &n)
	Used to determine the height and normal of a specific point on the terrain.
virtual void	Initialize ()
	Function automatically called on scene starting.
virtual void	SceneEnd ()
	Function automatically called on scene ending.

Detailed Description

Responsible for Scene functions.

Game objects are held by scenes. Scenes manage the back end of update, draw, draw2d, object registration, and setting up collision testing.

Member Function Documentation

CreateReverbSpace() [1/2]

ReverbSpace * Scene::CreateReverbSpace ( const ALuint & reverb )

private

Used to create a ReverbSpace with a reverb from ReverbManager.

revSpace = SceneManager::GetCurrScene()->CreateReverbSpace(ReverbManager::GetReverb("Test Reverb"));

revSpaceTwo = SceneManager::GetCurrScene()->CreateReverbSpace(ReverbManager::GetReverb(ReverbManager::DefaultReverbs::CAVE));

Parameters

reverb

Returns

ReverbSpace*

CreateReverbSpace() [2/2]

ReverbSpace * Scene::CreateReverbSpace ( const float & wMat, const float & fMat, const float & cMat )

private

Used to create a ReverbSpace with a dynamic reverb.

revSpace = SceneManager::GetCurrScene()->CreateReverbSpace(Materials::Brick, Materials::Dirt, Materials::Wood);

revSpaceTwo = SceneManager::GetCurrScene()->CreateReverbSpace(ReverbManager::GetReverb(.1f, .04f, .3f));

Parameters

wMat
fMat
cMat

Returns

CreateSourceListener()

SoundSourceListener * Scene::CreateSourceListener ( )

private

Used to create a SoundSourceListener.

sound = SceneManager::GetCurrScene()->CreateSourceListener();

Returns

SoundSourceListener*

CreateSourceWorld()

SoundSourceWorld * Scene::CreateSourceWorld ( )

private

Used to create a SoundSourceWorld.

sound = SceneManager::GetCurrScene()->CreateSourceWorld();

Returns

SoundSourceWorld*

GetCam2D()

Camera * Scene::GetCam2D ( )

private

Gets Current 2D Camera. For more information go to CameraManager.

GetCamFarClipPersp()

float Scene::GetCamFarClipPersp ( )

private

Gets Far Clip Plane. For more information go to CameraManager.

GetCamNearClipPersp()

float Scene::GetCamNearClipPersp ( )

private

Gets Near Clip Plane. For more information go to CameraManager.

GetCurrCam()

Camera * Scene::GetCurrCam ( )

private

Gets Current Camera. For more information go to CameraManager.

GetFOV()

float Scene::GetFOV ( )

private

Gets FOV. For more information go to CameraManager.

GetListenerLookAt()

Vect Scene::GetListenerLookAt ( )

private

Gets Listener Look At Vect. For more information go to Listener.

GetListenerPos()

Vect Scene::GetListenerPos ( )

private

Gets Listener Position. For more information go to Listener.

GetListenerUp()

Vect Scene::GetListenerUp ( )

private

Gets Listener Up Vect. For more information go to Listeners.

GetTerrainHeightAndNormal()

void Scene::GetTerrainHeightAndNormal ( const Vect & pos, float & h, Vect & n )

private

Used to determine the height and normal of a specific point on the terrain.

Returns 0 and Vect(0, 1, 0) if no terrain is set.

float h;
Vect n;

GetTerrainHeightAndNormal(Vect(0, 0, 0), h, n);

Matrix tmpWorld = pGObj_DemoObjOne->getWorld();

Vect r = n.cross(tmpWorld.get(ROW_2));
Vect up = r.cross(n);
tmpWorld = Matrix(ROT_ORIENT, up, n) * Matrix(TRANS, Vect(0, h, 0));
pGObj_DemoObjOne->SetWorld(tmpWorld);

Parameters

pos
h
n

Initialize()

virtual void Scene::Initialize ( )

privatevirtual

Function automatically called on scene starting.

This function gets called whenever a scene is started or swapped to. This is a good location to create Game Objects as well as Collision Pairs and Collision Selfs.

IsInsideReverbSpace()

bool Scene::IsInsideReverbSpace ( )

private

Returns true if inside a ReverbSpace.

MoveCam()

void Scene::MoveCam ( Vect up, Vect lookAt, Vect pos )

private

Moves Current Camera. For more information go to CameraManager.

MuteAllSounds()

void Scene::MuteAllSounds ( )

private

Mutes all current and future sounds.

ReturnReverbSpace()

void Scene::ReturnReverbSpace ( ReverbSpace * s )

private

Used to return a ReverbSpace to a scene.

SceneManager::GetCurrScene()->ReturnReverbSpace(revSpace);

Warning

All reverb spaces must be returned on scene end.

Parameters

s

ReturnSoundSource() [1/2]

void Scene::ReturnSoundSource ( SoundSourceListener * l )

private

Used to return a sound to a scene.

SceneManager::GetCurrScene()->ReturnSoundSource(sound);

Warning

All sounds must be returned on scene end.

Parameters

w

ReturnSoundSource() [2/2]

void Scene::ReturnSoundSource ( SoundSourceWorld * w )

private

Used to return a sound to a scene.

SceneManager::GetCurrScene()->ReturnSoundSource(sound);

Warning

All sounds must be returned on scene end.

Parameters

w

SceneEnd()

virtual void Scene::SceneEnd ( )

privatevirtual

Function automatically called on scene ending.

This function gets called whenever a scene is swapped from or ended. This is a good location to delete Game Objects.

SetCamFarClipPersp()

void Scene::SetCamFarClipPersp ( float c )

private

Sets Far Clip Plane. For more information go to CameraManager.

SetCamNearClipPersp()

void Scene::SetCamNearClipPersp ( float c )

private

Sets Near Clip Plane. For more information go to CameraManager.

SetCollisionPair()

template<typename C1, typename C2>

void Scene::SetCollisionPair ( )

protected

Creates a test pair for a GameObject to collide with different typed GameObjects.

Sets up a collision testing pair between different typed GameObjects using templates. Go to Collidable for more information.

GameObjOne* objOne = new GameObjOne();
GameObjTwo* objTwo = new GameObjTwo();

SetCollisionPair<GameObjOne, GameObjTwo>();

Template Parameters

C1
C2

SetCollisionSelf()

template<typename C1>

void Scene::SetCollisionSelf ( )

protected

Creates a test pair for a GameObject to collide with same typed GameObjects.

Sets up a collision testing pair between same typed GameObjects using templates. Go to Collidable for more information.

GameObjOne* objOne = new GameObjOne();
GameObjOne* objTwo = new GameObjOne();

SetCollisionSelf<GameObjOne>();

Template Parameters

C1
C2

SetCollisionTerrain()

template<typename C1>

void Scene::SetCollisionTerrain ( int threshold )

protected

Creates a test pair for a GameObject to collide with the Terrain.

Sets up a collision testing pair between a GameObjects and the Terrain using templates. Go to Collidable for more information. Will returna a hit if the amount of terrain cells equals or exceeds the given threshold.

GameObjOne* objOne = new GameObjOne();
GameObjTwo* objTwo = new GameObjTwo();

SetCollisionSelf<GameObjOne>(1);
SetCollisionSelf<GameObjTwo>(5);

Template Parameters

C1

Parameters

threshold

SetCurrCam()

void Scene::SetCurrCam ( Camera * newCam )

private

Changes Current Camera. For more information go to CameraManager.

SetFOV()

void Scene::SetFOV ( float f )

private

Sets FOV. For more information go to CameraManager.

SetListenerOrientation()

void Scene::SetListenerOrientation ( Vect lookAt, Vect up )

private

Gets Listener Position. For more information go to Listener.

SetListenerPos()

void Scene::SetListenerPos ( Vect p )

private

Sets Listener Position. For more information go to Listener.

SetTerrain()

void Scene::SetTerrain ( std::string TerrainName )

protected

Sets the Terrain for a given Scene.

SceneDemo::Initialize(){
    SetTerrain("Demo Terrain");
}

Parameters

TerrainName

SetTerrainMaterial()

void Scene::SetTerrainMaterial ( float m )

private

Sets the Terrain Material for occlusion. Defaults to no occlusion.

UnmuteAllSounds()

void Scene::UnmuteAllSounds ( )

private

Unmutes all current and future sounds.

UpdateCam()

void Scene::UpdateCam ( )

private

Updates Current Camera. For more information go to CameraManager.
